HYR flexible bearings are designed to withstand alternating bending and torsional stresses. Their thin-walled structure allows periodic elastic deformation when mated with the cam. They are manufactured using high-quality high-carbon chromium bearing steel for the inner and outer rings as well as the rolling elements, and are equipped with a one-piece nylon cage.
These bearings are specifically used in the wave generator of harmonic reducers and offer high precision, high load capacity, high torque capacity, and a compact size.
|

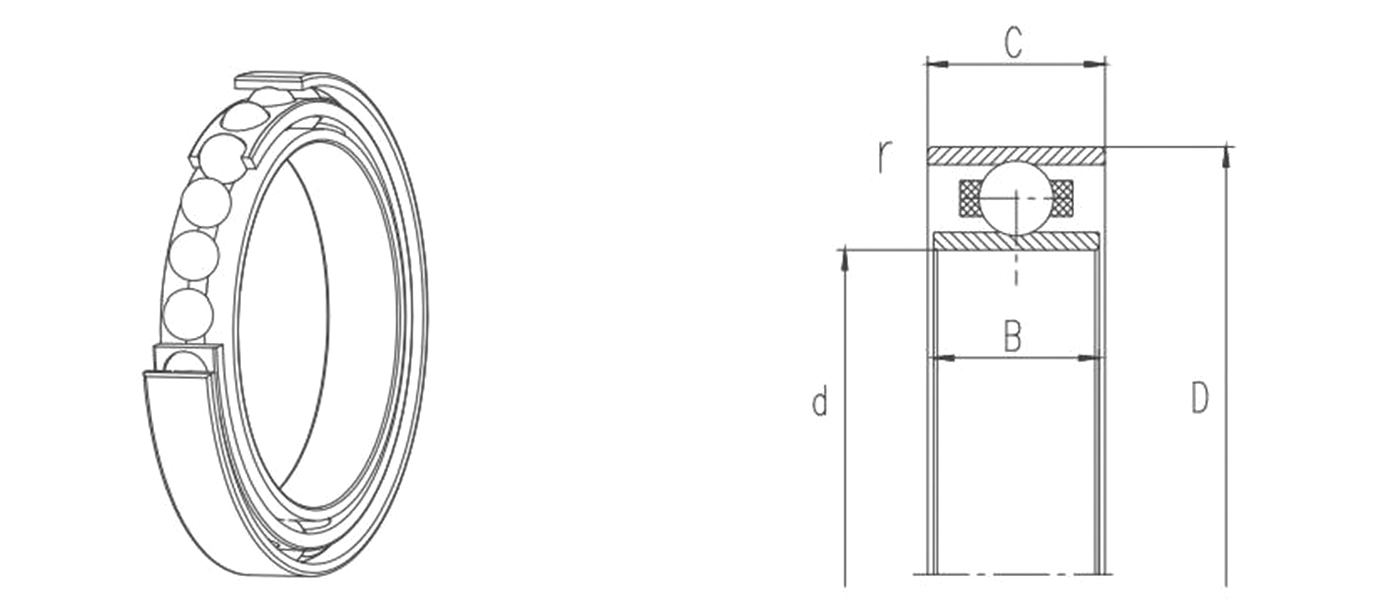

Bearing model |
Basic external dimensions |
Rated value |
||||||
|
d |
D |
B |
C |
r |
Maximum radial deformation |
Input speed (rpm) |
weight (g) |
|
|
HIRE-14 |
φ25.07 |
φ33.896 |
6.35 |
6.095 |
0.3 |
0.8 |
3000 |
10 |
|
HYR-14D |
φ25.07 |
φ33.796 |
4 |
4 |
0.3 |
0.8 |
3000 |
8 |
|
HIRE-17 |
φ30.3 |
φ41.722 |
6.68 |
6.16 |
0.3 |
0.9 |
3000 |
15 |
|
HYR-17D |
φ30.3 |
φ41.722 |
4.6 |
4.6 |
0.3 |
0.9 |
3000 |
13 |
|
HYR-20 |
φ35.56 |
φ49.068 |
8.13 |
7.24 |
0.3 |
1.0 |
3000 |
30 |
|
HYR-20D |
φ35.56 |
φ49.068 |
5.2 |
5.2 |
0.3 |
1.0 |
3000 |
25 |
|
HIRE-25 |
φ45.212 |
φ61.334 |
6.35 |
9.015 |
0.3 |
1.0 |
3000 |
40 |
|
HYR-25D |
φ45.212 |
φ61.134 |
6.35 |
6.35 |
0.3 |
1.0 |
3000 |
32 |
|
HIRE-32 |
φ58.928 |
φ79.748 |
8.64 |
11.81 |
0.3 |
1.2 |
3000 |
105 |
|
HYR-32D |
φ58.932 |
φ79.56 |
8.64 |
8.64 |
0.3 |
1.2 |
3000 |
95 |
|
HYR-40 |
φ71.12 |
φ98.171 |
10.29 |
14.475 |
0.6 |
1.5 |
3000 |
209 |
|
HIRE-50 |
φ88.9 |
φ122.707 |
12.7 |
18.085 |
1 |
2.0 |
3000 |
415 |
|
HIRE-65 |
φ117.856 |
φ159.312 |
15.88 |
23.495 |
1 |
2.0 |
3000 |
760 |
