Wholesale OEM/ODM NJG Cylindrical roller bearings- single-row complement roller

Home / Product / Cylindrical Roller Bearings / NJG Cylindrical roller bearings- single-row complement roller

NJG Cylindrical roller bearings- single-row complement roller

Tips:
1. The bearing does not have a stop ring, if the user needs, please specify when ordering.
2. When the user needs, the bearing can be surface treated and the dimensional accuracy is before treatm ent.
3. Type suffix character explanation
N-first position, indicating that the bearing outer ring has an improved stop ring groove.
2P-second position, indicating rubber cover seal, inner ring double assembly with stop buckle ring
2Z-second position, indicating metal cover seal, inner ring double assembly without stop buckle ring
V-third position, full roller (no cage).
4. The inner ring must be axially positioned.
+86-513-80311111 / +86-15050632597 [email protected]
contact us
PREV: NCF Cylindrical roller bearings-single-row complement roller NEXT:NNC Full complement cylindrical roller bearings
  • Parameter
  • Dimensions
  • Get A Free Quote

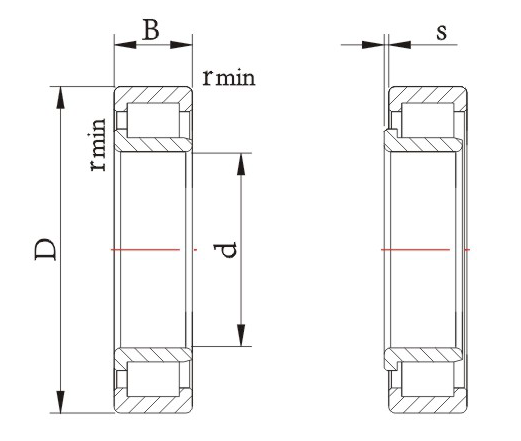

Dimensions Basic Load Rating Speed Rating (r/min) Weight (kg) Bearing No.
d D B r s Cr Cor Max Ref
mm mm mm min mm kN kN
25 62 24 1.1 2 68,2 68 4500 5600 0,38 NJG 2305 VH
30 72 27 1.1 2 84,2 86,5 4000 4800 0,56 NJG 2306 VH
35 80 31 1.5 2 108 114 3400 4300 0,75 NJG 2307 VH
40 90 33 1.5 2 145 156 3000 3600 1 NJG 2308 VH
45 100 36 1.5 3 172 196 2800 3400 1,45 NJG 2309 VH
50 110 40 2 3 208 219 3400 4100 1.81 NJG 2310 VH
55 120 43 2 3 233 260 2200 2800 2,3 NJG 2311 VH
60 130 46 2.1 3 260 280 2900 3400 2.88 NJG 2312 VH
65 140 48 2.1 3.5 303 360 1900 2400 3,55 NJG 2313 VH
70 150 51 2.1 3.5 336 400 1800 2200 4,4 NJG 2314 VH
75 160 55 2.1 3.5 396 480 1600 2000 5,35 NJG 2315 VH
80 170 58 2.1 3.5 457 570 1500 1900 6,4 NJG 2316 VH
85 180 60 3 4 484 620 1400 1800 7,4 NJG 2317 VH
90 190 64 3 4 528 670 1400 1800 8,75 NJG 2318 VH
95 200 67 3 4 580 720 1700 2200 10.2 NJG 2319VH
100 215 73 3 4 704 900 1200 1500 13 NJG 2320 VH
110 240 80 3 5 858 1060 1100 1300 17.5 NJG 2322 VH
120 260 86 3 5 952 1250 1000 1200 22,5 NJG 2324 VH
130 280 93 4 6 1080 1430 950 1200 28 NJG 2326 VH
140 300 102 4 6.5 1210 1600 850 1100 35,5 NJG 2328 VH
150 320 108 4 6.5 1450 1930 800 1000 42,5 NJG 2330 VH
170 360 120 4 7 1760 2450 700 900 59,5 NJG 2334 VH
180 380 126 4 9 1870 2650 670 800 69,5 NJG 2336 VH
190 400 132 5 9 2160 3000 630 800 80 NJG 2338 VH
200 420 138 5 9 2290 3200 600 750 92 NJG 2340 VH
220 460 145 5 10 2550 3550 530 670 111 NJG 2344 VH
240 500 155 5 10 2810 3900 500 630 147 NJG 2348 VH
260 540 165 6 11 3410 4800 430 530 177 NJG 2352 VH
